JOHN YOUNG - SYBRON LON EXCHANGE MEMBRANE

SYBRON LON EXCHANGE MEMBRANE

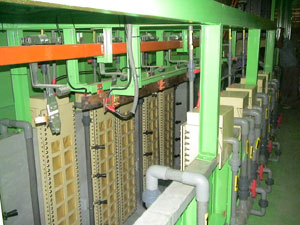

Anode Membrane Plates for Electro-Coating

Premium Production
Low Permeability
Higher Total Capacity
Product Uniformity
Customized Sizes  45"W(114cm)×~50L Meters
No Waste / Continuous Roll
CMI-7000 Cation Membranes and AMI-7001 Anion Membranes

Technical  Specification

CMI-7000S CMI-7000CR AMI-7001S AMI-7001CR
Single Sheet

Continuous Roll

Single Sheet

Continuous Roll

Standard Size: US
Standard Size: Metric
48in x 124in
1.2m x 3.1m
48in x 120ft
1.2m x 37m
48in x 124in
1.2m x 3.1m
48in x 120ft
1.2m x 37m
Standard Thickness (mils) 18±1 20±1 18±1 20±1
Electrical Resistance (Ω/cm2)
0.5 mol/L NaCl
40±1 40±1 84±2 84±2
Permselectivity (%)
0.1 mol KCl/kg / 0.5 mol KCl/kg
94 94 90 90
Total Exchange Capacity (meq/g) 1.3±1 1.3±1 1.0±1 1.0±1
Water Permeability
(ml/hr/ft2) @5psi
less than 15

less than 30

less than 15 less than 30
Mullen Burst Test strength (psi)

200

200 200 200
Thermal Stability (C°) 90 90 90 90
Chemical Stability Range (pH) 1-12 1-12 1-10 1-10
Ion Form Sodium Sodium Chloride Chloride

Preconditioning Procedure
Membranes should be preconditioned by emersion in a salt solution or a solution similar to that of the intended application for several hours to allow for membrane expansion.
